Name: ERGOPLUS TORCH MB15
Brand: Trafimet
SKU: ERGOFRESH15
Availability: InStock

ERGOPLUS TORCH MB15

Ex VAT

Specifications

Duty Cycle (X 60%): 180A CO2 / 150A Mixed Gas

Wire Diameter Capacity (Ø): 0.6 mm to 1.0 mm (.023″ to 1/16″)

Voltage Peak (V PEAK): 113

Torch Weight (at 1 meter): 0.65 kg (1.43 lb)

Connection Type: Euro Connector Standard)

Ergoplus 15 Technical sheet

Description

The updated ERGOPLUS 15 air-cooled MIG torch combines rugged industrial durability with advanced ergonomics. Every component—from the trigger to the internal torch head structure—has been re-engineered to deliver peak welding performance, lower operating costs, and reduced physical fatigue on the welder. Equipped with a standard Euro connector, it is ready to plug into your existing setup and deliver reliable, high-amperage welds.

Key Technical Features

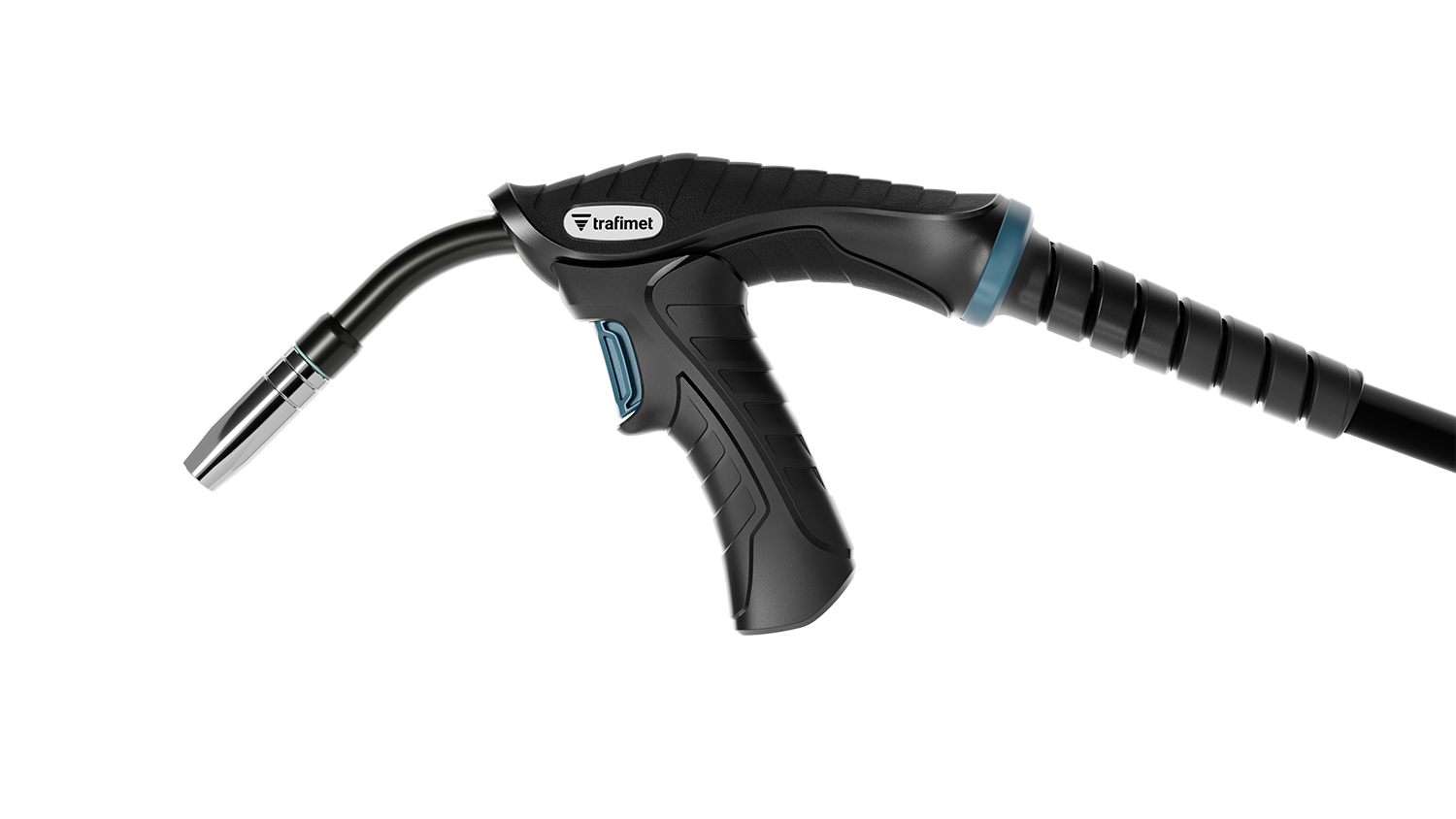

Ergonomic Pistol Grip (25–64% Strain Reduction):
Every standard sales package includes a compact, one-click detachable pistol grip. Independent EMG measurements by Myontec prove that using this handle completely alters the shoulder and elbow position, slashing muscle workload by 25% to 64% depending on your welding angle. It clips on and off instantly with no tools required and easily fits inside a pocket.
IP67 Sealed Microswitch Trigger:
Say goodbye to failed triggers caused by shop debris. The ERGOPLUS 15 replaces traditional open-contact mechanical switches with a fully sealed IP67 microswitch. This premium protection barrier completely seals out dirt, fine metal dust, and humidity, dramatically extending the electrical lifetime of the torch.
Cooler Torch Head & Lower Consumable Costs:
Advanced internal engineering ensures the air-cooled torch head runs cooler than ever before. By pulling heat away from the front end efficiently, the consumption rate of tips and nozzles is drastically reduced—saving you money on frequent consumable replacements.
Flexible Handling & Premium Materials:
Built using advanced, highly flexible materials and upgraded bending supports at the cable junctions, this torch maneuvers effortlessly. The cable design allows for smooth, stress-free handling in tight workspaces or demanding overhead positions.
